Hardware Description
2.5
2.5.1
Board Settings
Jumpers
The AT89STK-06 board has two types of settings:
Jumpers
Solder strap
Test points
Table 2-1, Table 2-2 and Table 2-3 provide an overview of the available settings and
test points.

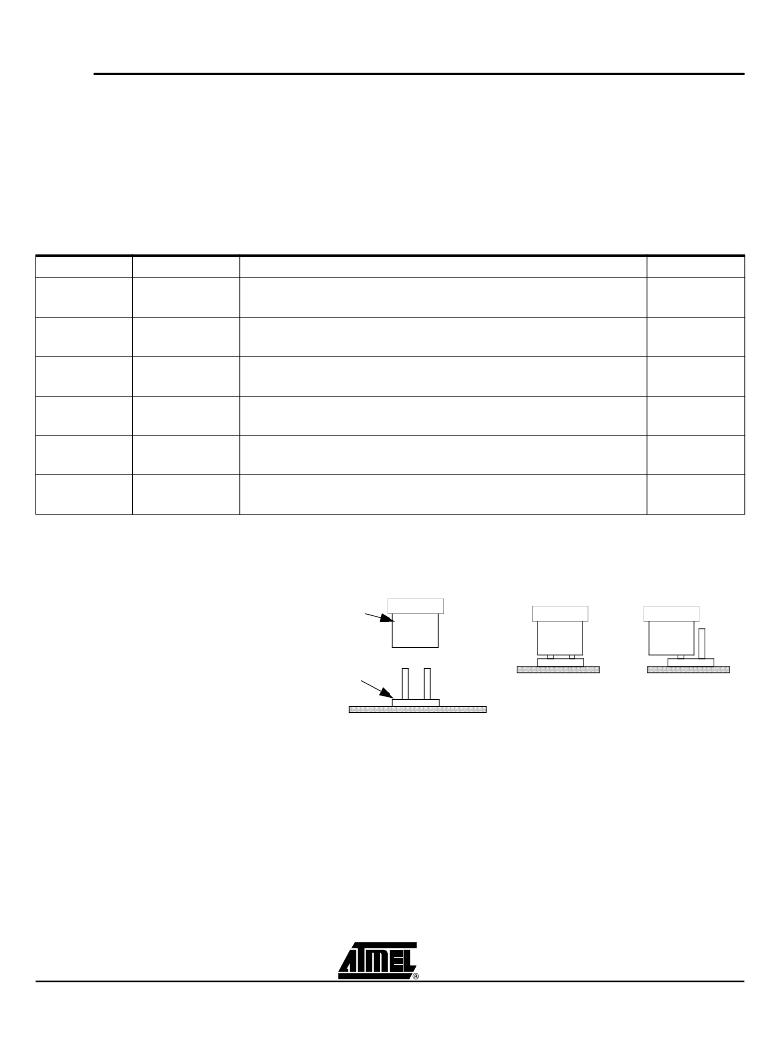

Table 2-1. Default Jumper Setting
Reference
JP1
JP2
JP3
JP4
JP5
JP6
PCB Name
EA
MUTE
CANRes
RTS
DTR
Batt
Comments (guidelines)
ON : allows external execution
OFF: Internal code execution
ON : Enable C51 generic extension board (optionnal) buzzer
OFF: Disable C51 generic extension board (optionnal) buzzer
ON : Enable CAN terminator resistor
OFF: Disable CAN terminator resistor
ON : Enable RTS line to control ISP mode (for AutoISP mode)
OFF: Disable RTS line to control ISP mode
ON : Enable DTR line to drive MCU reset (for AutoISP mode)
OFF: Disable DTR line to drive MCU reset
ON : Enable Battery charge
OFF: Disable Battery charge
Default
Open (OFF)
Open (OFF)
Open (OFF)
Open (OFF)
Open (OFF)
Open (OFF)
Figure 2-10. Jumper Setting Definition
strap
jumper header
AT89STK-06 Demo Board Software Demo Guide
ON or
Ex: 1-2
OFF
2-7
4339C–CAN–07/05
